ISO Tank T11/T14 Liquid Tank 40FT/20FT Chemical Storage Tank Container
Specification for 20Feet 24CBM HCL Acid Tank Container:
|Dimension of the 20Feet 24CBM HCL Acid Tank Container|
|Frame Material||Q345B square steel tube|
|No. of Frame lock||4|
|Top Walkway||Anti-skid net spread on both side|
|Ladder||Two units(on the front and rear cover)|
|Tank Material||Carbon Steel|
|Tank Inside||Plastic-lining thickness 16mm|
|Thickness of Tank body||5mm|
|Thickness of Tank Cover||6mm|
|Thickness of the battle||3mm|
|Manhole||Dia. 20inch seal plastic-lined steel tank cover|
|Valve||2pcs 3inch steel lined fluororubber ball valve,brave valve|
|Painted||Inner Tank||Origin white plastic|
|Face Painted||To the order of customer|
|Design Code||JB/T4782-2007 and GB18464.1-2006|
|Note: All the details not mentioned above should comply with Chinese regulations. If any component or structure changed, the price shall be modified accordingly.|
1. Inner layer - made of 6 or 8 mm thick Q235-B steel plate, compared with ordinary 5 mm thick single-layer tank, the strength is greatly improved;
2. Outer layer - tempered glass fiber thickness of 4.0mm or more, good compressive and seismic resistance. It has strong corrosion resistance and corrosion resistance;
3.Unique technology is adopted between the inner and outer layers to make it reach a gap of 0.1-1mm, so as to eliminate hidden dangers from the root;
4. Leak detector 24 hours to monitor, to prevent leakage caused by security risks;
5. Widely used for storage and transportation in dairy, beverage, wine technology, with function of anti-seismic, anti-explosion, leakage-proof and cooling.

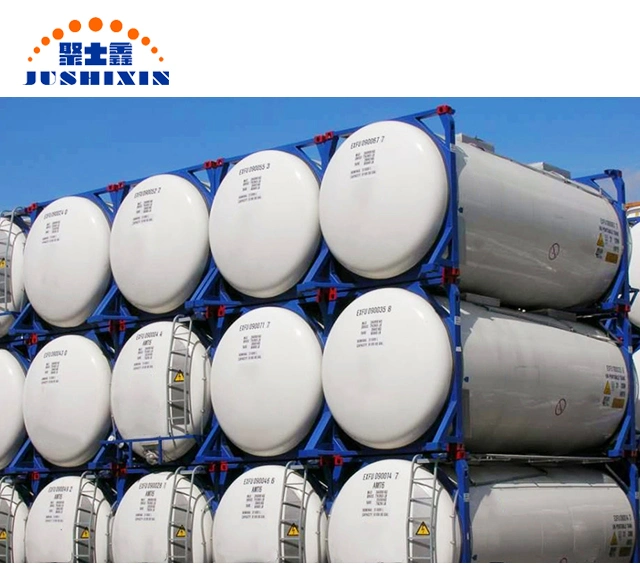

Detailed photos for the Tank container:
3.More Styles for the ISO tanker container:
4.Design proposal for the 20feet ISO tank container:
---Net capacity: not less than 20cubic; Shell of tank container Materials using Wisco Q235 High quality carbon steel 6mm baffle;
---Two feed inlets,bigger manhole covers, 2 NOS. pressure vent valves( breather valve) , at the end of the bottom , DN80 dump valve(discharge valve). Screw of Openings and valves adopt stainless steel screws, single coaming board on the top of tank Molybdenum red reflective tape;
---Framework is made of High quality steel, each one ladder at back and forth. With two acid resistant tube, two 4kg fire extinguishers.
5.Optional parts for the tanker container:
Volume: 20 cube meters to 52 cube meters
Material: Carbon steel/aluminum/stainless steel material
Medidum:HYDROFLUDRIC ACID HCI 32%,CAUSTIC SODA NaOH 32%,NaCl. NaClO etc. Chemical Liquid.
6.BRIEF INTRODUCTION TO OUR FACTORY:
Henan Jushixin Transportation Equipment Co.Ltd is the professional manufacturer of ISO tank container,such as standard liquid tanks, electrical heating tanks, reefer tanks, food grade tanks, baffle tanks, swap tanks, gas tanks, H2O2 tanks, AHF tanks, bitumen tanks, different types of lining tanks, etc, and 10ft tanks, offshore tanks, IBC/SBC ,etc, with high standard machinery and automatic equipment, powerful R&D team and elite sales team, we have built a long business relationship with many world famous enterprises.pls contact us if any interset.
7.FlEXIBLE SERVICE WE PROMISED FOR EACH ITEM FROM OUR FACTORY:
>>>Offering the one-stop full lifecycle services;
>>>Our vehicle users will receive 24-hour uninterruptible "Entire Journey" service;
>>>CCC&ISO Agreement, 1 Year Guarantee Term, Main-beam Lifetime Promise;
>>> Small Order Can Be Accepted;
>>>Any Color & Logo Available;
>>>The Product Dimension + Specifications Can Be Designed As Your Needs.
**You please send us your enquiry;
**We shall reply you with the quotation within 12 hours;
**We negotiate on the configuration that you need;
**Confirmation of the tech data → sign contract (P/I) → 30% deposit (or L/C issuing)→ production;
**Manufacturing process updated news → completing production;
**Balance payment → ex works → shipment → custom clearance → A/S service for 1 year.
